Understanding/Using System Variables – part 2

Intro

In a first blog about System variables I offered a free table with description an references for all system variables. If you didn’t get that table yet, please get it from that article. That older post described shortly all caregories. It had focus on the variable categories s which are read only, and how they can be used to show information in a course and/or for editing/debugging reasons (like cpInfoCurrentFrame).  Not treated in that first part was the Quizzing category because I already had a detailed explanation in this blog post.

Here the focus is on that very special category ‘Movie Control‘. It is special because those variables cannot be inserted for viewing in a course.  More important is that they can be controlled, changed by the developer on runtime which is not possible for any variable for the other categories. Learning how to control these variables can be a good step up to getting started with advanced or shared actions: more complicated actions than the simple actions which you find in the dropdown list on the Actions tab of an interactive object.

Terminology

Since this post is meant for users starting with variables, I want to explain some terms that are important expecially when working with system variables of the Movie Control category. You can skip this part is it sounds familiar to you.

Slides versus Frames

In questions on the forum I often see confusion between those two terms. A normal cptx project is slide-based. That leads many users to suppose that Captivate is functioning like Powerpoint, but that is not true. Essentially Captivate will lead to a movie, not to a sequence of slides which is typical for a presentation. That movie is more than a simple video, because interactivity is based on offering control to the user and to do so you need to  pause the movie. This is not the case with a video: the learner can pause the video, but the developer has no influence of therm with the exception of the interactive videos. I use the term interactive movie for a fully interactive published Captivate file. An interactive video is not better at all, more of a hype at this moment, because is interactivity is more limited. Although a PPT can have animations with some duration and seqeuence, it is not a real movie unless you capture it as a movie.

Any video/movie is played at a certain ‘speed’. The speed is defined in frames per second or FPS. The default speed of a published cptx file is set to 30FPS (but a video demo at 15FPS). If you keep the default length of a slide in CP, which is 3 seconds, that means that you have 90 frames in that slide.

I explained these terms already many times. As you can see in the table, several system variables in the Movie Control category are linked to navigation between slides or frames. Understanding the difference is required.

Boolean variable

A variable can have any value in Captivate: a text (often called string) or a number. When you look in the table you will see the typical values of the system variables. Many of them also aren:  from the ‘Boolean’ type. That is a variable that will have only two possible values: 0 or 1, true or false. You can interchange them easily, I prefer using the numbers 0/1 because it is less typing.  In the Movie control category many variables are indicated as Boolean: cpCmndCC, cpCmndMute, cpCmndNextSlide, cpCmndPause, cpCmndPlaybarMoved (pretty useless, internal), cpCmndPrevious, cpCmndResume, cpCmndShowPlaybar, cpCmndTOCVisible and cpCmndLockTOC.

Like other variables Booleans have a default (or start) value which you find also in the table. Often it is 0, which means the situation described by the variable is turned OFF. But there are exceptions. Some examples:

  • cpCmndMute: default value = 0, which means that audio is playing
  • cpCmndPause: default value = 0, which means the course is not paused
  • cpCmndShowPlaybar: default value = 1, which means that the playbar is visible
  • cpCmndTOCVisible: default value = 0, which means that the TOC in overlay is not visible

Toggle

When used as a verb, this means ‘switch between two situations’.  I didn’t use the word ‘state’ to avoid confusion with states in a multistate object. You can toggle a playbar between the visible and hidden situation, audio between muted and not muted, a TOC in overlay between expanded and collapsed, any object or group between visible and invisible. There is a close relation between Boolean variables and toggling. For that reason a couple of versions ago the new command/action Toggle’ appeared in the dropdown list of the Actions tab, and in the advanced actions dialog box.

Some people also use Toggle to indicate a Toggle button. That is a button which allows to switch between two situations£. Several buttons on the Captivate playbar are toggle buttons: turning CC on/off, play or mute audio, pause or continue the movie.

Use Cases

Toggle buttons

CC on/off

If you use custom buttons instead of a playbar, which is recommended for any non-linear project, you can create a toggle button to turn Closed Captioning on/of. Beware: in versions before CP2017, Closed Captioning was always turned off when the course started. That is the reason why the default value of cpCmndCC  is still indicated as O. With the new more elaborated features for CC, you also have the possibility to turn CC on for a project. In that case the variable will have the value 1.  To create a toggle button for this feature you can use a shape button on the main master slide (no need for pausing) if you are in a non-responsive project. For a responsive project with fluid boxes, using the main master slide is a bad idea (no fluid boxes possible), you’ll have to use the other master slides. Use guides for the creation of the footer fluid box, so that it is consistent for all the master slides.

Create this simple action to be triggered by the Success event of the button:

Since you don’t need this button to pause the slide, you have to uncheck the option ‘Pause Project until user clicks’.

Audio on/off, Playbar on/off, Overlay TOC expand/collapse, TOC lock/unlock

The workflow is exactly the same as for the CC toggle button. In the screenshot you see that the appropriate system variables show up and can be selected.

It is of course possible to replace a toggle button by two  buttons. Example: a button to show the overlay TOC  and another one to hide it. In that case you could use the commands ‘Show TOC’ (same result as Assign cpCmndTOCVisible with 1) and ‘Hide TOC’ (same result as Assign cpCmndTOCVisible with 0). This is  an alternative for the tiny expand/collapse buttons attached top left of the slide. A toggle button saves space on the slide, easier to manage.

Two buttons are also possible for Playbar on/off  (Show Playbar/Hide Playbar) and for locking/unlocking the TOC for navigation (Lock TOC/Unlokc TOC).

For Audio on/off you do NOT find such simple actions in the Actions tab.  ‘Play Audio’ is meant only to play an audio clip, but has no effect on slide audio, object audio, nor background audio. Similar with ‘Stop Triggered Audio’ which can only stop clips started with the command ‘Play Audio’. If you want two buttons, you will need to use the system variable cpCmndMute, with the Assign command:

  1. Assign cpCmndMute with 1    will mute audio
  2. Assign cpCmndMute with 0     will have it play again

To create a toggle button with a different look when the situation is toggled, you’ll need an advanced or shared action. Have a look at:

Multiple Toggle Buttons with one Shared Action

Shape category ‘Buttons’ – Challenge

Being a tutorial for newbie (no advanced/shared actions, I will not explain using the navigation system variables for two reasons:

  1. You probably never will use the slide navigation variables  for navigation between slides. It is intuitive to use ‘Go to Next Slide’, muc more than ‘Assign cpCmndNextSlide with 1’
  2. The navigation variable cpCmndGotoFrame is  very important in micro-navigation but that is a more advanced topic that needs the use of advanced/shared actions. If you are interested, have a look at: Intro to Micro-Navigation

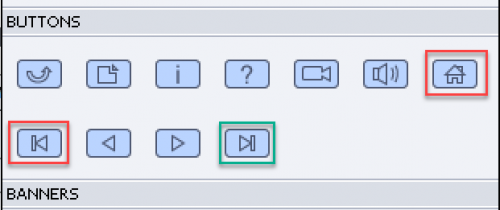

However I have a challenge for you! The shape dialog box has a special category labeled ‘Buttons’.

Typical for these shapes: the option ‘Use as button’ is checked off (no pausing point by default). They will trigger an action, which for most buttons is a simple action. You will see that the Mute button  is assigning “1” to the system variable cpCmndMute. The three buttons marked in the screenshot trigger an advanced action: the Home button and the Start button (both marked in red) use the advanced action ‘startSlide‘, the End button (marked in green) uses ‘endSlide‘.  You can open th action in the Advanced Actions dialog box,  by clicking the Browse icon:

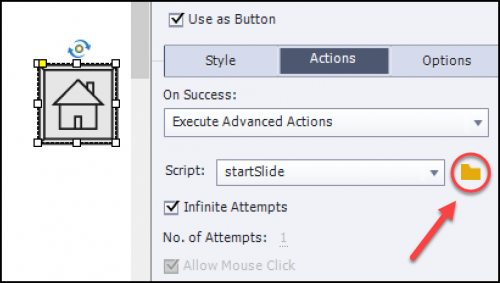

Look at the use of the system variables in startSlide :

  • Assign cpCmndGotoSlide with 0          this means: go to the first slide (index starts with 0)
  • Assign cpCmndResume with 1              is the same as Continue

Can you explain the script ‘endSlide’?

More?

A lot more is possible when using the movie control variables in advanced or shared actions. I already posted some links before. Here is a link to a blog post about ‘Replay Slide‘ where you’ll find different scenarios. It will help to understand the importance of frames: if you only get back to the first frame of the slide, reset will not happen if this is done by an On Enter action, or if you have Text Entry Boxes/Drag&Drop slide.

For newbies I plan a third article about user variables and simple use of them (still without advanced/shared actions). Would love to get some comments.

The post Understanding/Using System Variables – part 2 appeared first on eLearning.

Understanding/Using System Variables – part 1

Intro

Many years ago I did write out some tutorials explaining how to use variables. They are still available in Adobe’s Knowledge base, but of course the screenshots are outdated since they were created in Captivate 4 and 5. Inspired by a recent thread in the forums, where it took a while to explain the use of variables, I want to write out some posts about Variables. This first article will focus on System variables and include a downloadable table which you can use as reference for them.

What is a Variable?

If you ‘google’ to find a definition of a variable you will get thousands of results. I would say that it is a container identified by a name and the content can change or be changed (is variable). It is a term used in programming languages and applications. It makes them more flexible, powerful. If you are a maths lover, compare this equation: 5 + 6 = 11 with  a + b = c. The a, b, c are variables, and the second equation allows you to create tons of small sums. The first equation uses ‘literals’, and you have only one sum.

Captivate’s System Variables

Captivate has by default 6 categories of System variables and 2 automatically defined user variables. This article is only about system variables, they are available for your use in any project. All the system variables start with the characters ‘cp’. Lables are, as usual in Captivate, unique for each variable and they are case sensitive. It may be confusing that the two  user variables,  created for each new project (cpQuizInfoStudentName and cpQuizInfoStudentID) also start with the same characters..  When you open the dialog box  Project, Variables the type ‘user’ is automatically selected, and you see only those 2 variables. Be sure: those are NO system variables, they are necessary for the workflow of Internal Server reporting, but can also be used with many LMS’s. The certificate interaction uses  cpQuizInfoStudentName as well.

Categories –  table

You can download the free explanatory table from  SysVars

Captivate has 6 categories of system variables. To see them switch to System type in the dialog box:

  1. Movie control: is a very special category, which I will explain in a later article.  They offer a way to control your course by changing a system variable. This is not a normal behavior of variables, and can be considered as a, add-on to more complicated advanced/shared actions. These system variables are also different from those of category 2-5 because their value cannot be displayed in Captivate output.
  2. Movie Information: typical for this movie are the number of slides/frames, the speed (FPS), which frame/slide you are at this moment, etc… All variables of this category are read only. Their value can be used by the developer, they can be displayed in a Captivate file, during Preview and after publishing. I will point out some examples later on that could save you time while developing. In the table you’ll find some references as well.
  3. Movie Metadata: you can add metadata to a course, lot of it can be done using File, Project Info.  The behavior and usefulness are similar to the previous category. More tips below the examples below.
  4. System Information: data about present Date, Time, or which OS you are using if watching on a mobile device are in this category. Like 2-3 these variables are read only but can be used in the same way as those from Movie Information and Movie MetaData. Look in the table for examples.
  5. Quizzing: will not expand on this category because I already posted a blog about using Quizzing System variables
  6. Mobile: has only one system variable which is exceptional because it stores 3 numbers. It cannot be displayed in a course, only be used in actions.

This blog has focus on categories 2-3: they are very useful when you insert them in a course, either during debugging or to be able to show their value in output.  The workflow is the same for all variables that can be displayed (not category 1n nor 6).

Display a variable

The best way to insert a variable to be displayed is this workflow:

  • Create a text container: either a caption or a shape on the slide
  • Go into edit mode, by double clicking or using the function key F2.
  • You’ll get the Character part in the Properties panel. Find tesee three buttons

    First button inserts a symbol, last button a hyperlink, but you need to click the second button to insert a Variable
  • Switch from the default User type, to System.
  • Choose a category under the dropdown list which has by default ‘All’ as choice
  • Select the wanted variable.
  • The ‘length’ is set by default to 50 characters, but you can edit this number. It is essential to do so if you expect the value to be greater than 50 characters (spaces included).
  • Confirm the insertion with the OK button.
  • While editing the variable will appear as in this first screenshot, between double $$. When previewing or after publishing that placeholder is replaced by the value (second screenshot)

Edit and Runtime view

Some examples

1. Slide counter: Slide X/Y

You use two system variables from the category Movie Information: cpInfoCurrentSlide and cpInfoSlideCount. Insert this text on the first slide of your course, and display it for the rest of the project.  Do not forget to check off ‘Always on top’ for the text container.

2. Author name in Theme

You will use the variable cpInfoAuthor from the category Movie Metadata. While creating a custom theme to be used in multiple courses, insert this variable in a text container on the main master slide. Master slides are part of the theme. Do not forget to warn your colleagues to fill in the fields under File, Project Info.

3. Course name in Theme

If you use a Title master slides, you can insert the variable cpInfoCourseName on that master slide as title. That variable also blelongs to the category Movie Metadata. Same comment: Project Info has to be defined by the developer. You can also use this variable in a footer of course.

4. Debugging Timeline

As I mentioned many times, understanding how to pause the timeline, and its consequences on objects is very important. I always recommend to insert a text container with the variable cpInfoCurrentFrame to watch pauses while Previewing the project. It is a variable from the category Movie information. You can see that I apply this recommendation myself in this movie:
Captivate’s Timeline

You’ll certainly find more examples. When used in combination with advanced or shared actions, lot more is possible but that is beyond the scope of this introduction.  One example: to show the elapsed time on the course (the real time spent, not the developer’s time based on slide durations), you cannot just insert the variable cpInfoElapsedTimeMS (from Movie Information) because it is defined in milliseconds. You need to do some simple maths to make it readable to the learner, and that means …. advanced action.

The post Understanding/Using System Variables – part 1 appeared first on eLearning.
