Learning Thursday #9 – Immersive Learning Experiences in Real Life

Learning Thursday is a blog series that features a new L&D article every other week along with discussion points.  Read and then share your own ideas by commenting below!  Check out the last Learning Thursday here.

What does the term immersive learning experience mean to you?  Check out the below video of students learning Mandarin in an immersive learning environment, with the help of artificial intelligence.  This project is taking place at Rensselaer Polytechnic Institute (RPI).

This simulated experience allows students to practice foreign language skills in a restaurant, garden, or class.  There are tools within the experience that allow the learner to compare their pronunciation and pitch tone against what is ideal.

Please comment below:

  1. Other than teaching foreign languages, what other subjects do you think would be interesting to teach in an immersive environment?
  2. In what ways can simulated learning environments benefit the student?

If you’re interested in developing your own 360 degree learning environment, check out Adobe Captivate 2019.

The post Learning Thursday #9 – Immersive Learning Experiences in Real Life appeared first on eLearning.

eLearning Is Dead! Long Live Interactive Instructional Simulations!

According to Docebo and Ambient Insight research on learning technology types growth rates 2019-2024, the demand for eLearning content will fall by 7%. On the other hand, the demand for game and simulation based content will rise by 20%. So, what are instructional simulations? This post was first published on eLearning Industry.

Training Simulation: images as feedback


This step-by-step blog is for newbies, based on a question launched in the forum yesterday, look at the thread:


Goal: to have automatically images instead of the default failure message in a Software Simulation, Training mode. Don’t fear: I will not use any variables nor shared/advanced actions. It is a very simple workflow, provided to use it before recording! It is a lot more complicated if you want to achieve this after recording.

Default setup in all Themes

Feedback messages exist not only in Training/Assessment Simulations where they are linked to a Click box or a Text Entry Box, both interactive objects. You also have them for Interactive objects in normal, non-sim projects. In the default setup this is a bit confusing to newbies for these reasons:

  1. Feedback messages can be captions or shapes (both are text containers). Success, Failure, Hint messages have no individual timeline, they appear automatically, are linked to the interactive object: click box, button, Text Entry box
  2. In the default setup, the choice is to have Shapes, not Captions. You see this under Preferences, Defaults. You can change that preference by checking this box (SFH stands for Success, Failure, Hint):
  3. However this is NOT the default setup for those messages in Software simulations where Captions are the default. To change to Shapes, you need to check this box under Recording, Modes:

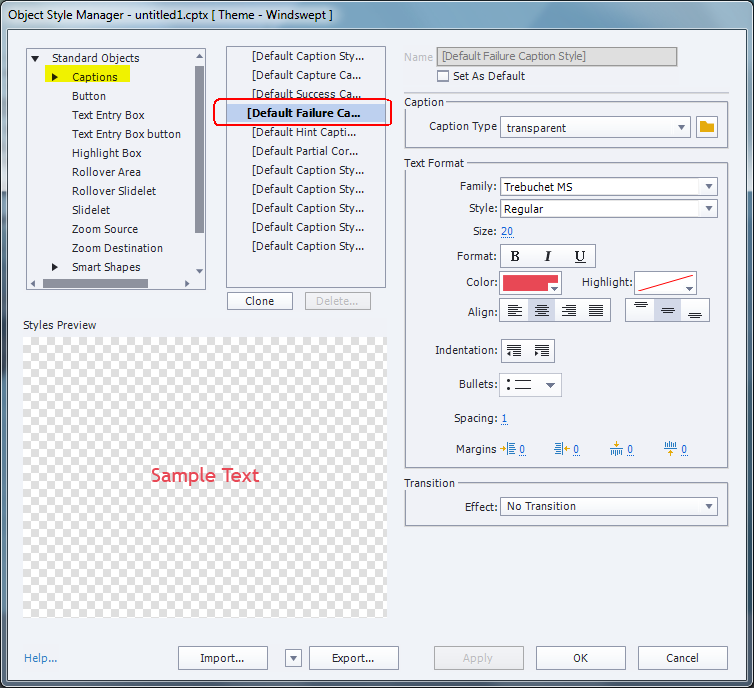

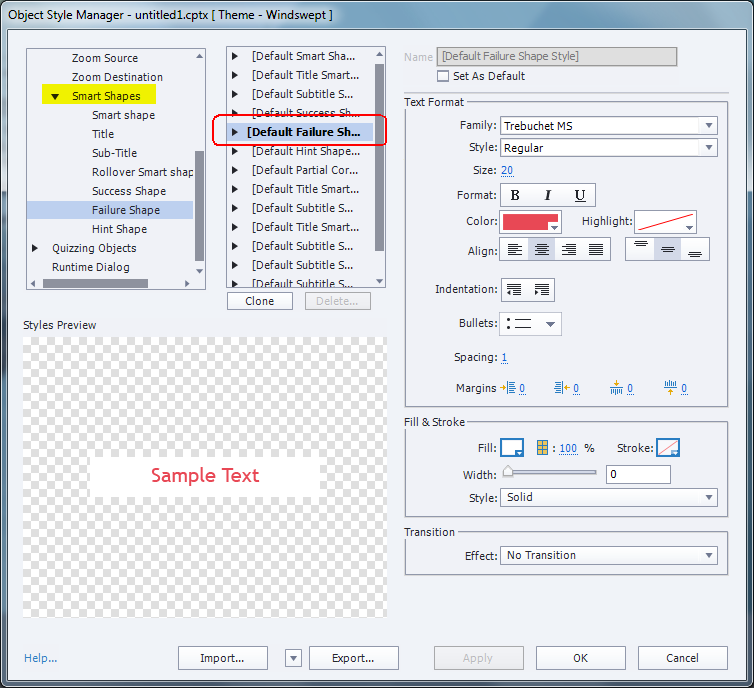

  4. Both types of text containers, Shapes and Captions do use a dedicated, default style. There is one style for Success, another for Failure and one for Hint message. You can check all of them out in the Object Style Manager (menu Edit, or SHIFT-F7). As all styles, these are part of the used Theme. FYI: I used the Windswept theme packaged with CP2019. Here are two examples: one for a Failure message in a Shape, another for a Failure message in a Caption.
  5. If you use the same type of text container for both normal projects and software simulations by changing checking either the checkbox in Preferences, Defaults to switch to captions, or the one in Recording, Modes to switch to Shapes for sims, in the default setup you will use the same style for all messages of that type. This may not necessarily be what you want, as is the case for the original issue here: only the Failure feedback message for the software simulation slides have to be ‘converted’ to images, not those for non-sim slides.


1 Switch to Shapes for Simulation feedback

Open Preferences, Recording and choose Modes.

Check off the option ‘Show Smart Shapes instead of Captions’.

2 Create shape filled with Image

2.1 Import Image in Library, check Size

Import the image you want to use to the Library using the second button:

It will be in the Images folder, you can use JPEG or PNG (eventually GIF). Open its Properties with the right-click menu on its name and take note of the size:

2.2 Create a shape with that size

Create a (rectangular) shape with exactly the same size, using its Options tab (or eventually a grid created with guides);

That shape will automatically take on the Default shape style, in this case it is filled with a  Solid color, grey, from the Theme Colors.

2.3 Fill the shape with the image

With shape still selected, switch back to the Style tab in the Properties. Open the dropdown list under Fill, and choose Image instead of Solid. The default texture will now fill the shape.

Click the Image button to open the dialog box in this screenshot. You’ll see the folder Images from the Library and can choose your image, confirm with OK:

2.4 Edit Character features

Although the feedback now looks like an image, the text defined in the rdl file for recording feedbacks (too bad that it is not available in Preferences like the Quiz feedbacks) will appear anyway. For that reason you have to set up margins to force that text in the correct position by changing margins font size etc…

If you want to be able to add text in the shape, you can style that text (font, size, color) in the Character part, under the Style tab. For this particular image the challenge was setting up the alignment. I used the maximum number for the left margin (100), which was not sufficient. I had to add twice the Increase Indent as well.  In this case I supposed the feedback text would be edited in each slide. If you just want to keep the default feedback text which is (in English) ‘Incorrect, please try again.’ I would increase the font size, and probably also the bottom and right margins.

3 Create custom style

At this moment the field Style still shows ‘Default Smart Shape Style’, but preceded by a + sign. This sign means that the style has been overridden, which is a situation you have to avoid whenever possible. You will create a new custom style, using the tiny hamburger menu in the top right of the Style part. In that menu choose ‘Create new style’ and give that style a meaningful name. I labeled it ‘MyFailureShape’:

You don’t need the shape anymore now, you could delete it.

4 Set custom style to be used for Failure feedback

Open Preferences, Recording and go to Defaults. The Recording defaults dialog box opens. Those defaults are also part of the Theme, it is not necessary to change anything in the Object Style Manager. Find the feedback message where you want to change the style, in this case the Failure Shape style and choose the custom style from point 3.


Now you are all set. Start the recording, the Failure feedback will have your image style. However the size of the feedback will be automatically be rescaled to fit the size of the feedback text. You will have to check each slide and have to resize the shapes. AFAIK there is no way to keep a fixed size for any feedback message which would have been very useful for this use case. Will certainly log a feature request. Have a look at a failure message as it was inserted:

You could of course also use the same workflow for the Hint and Success feedback messages. If you want to use those feedback styles in other projects, the easiest way is to save the theme and to apply it to other projects. As explained in this blog, both object styles and Recording defaults are part of the theme (Master slides and Skin are the other components).

The post Training Simulation: images as feedback appeared first on eLearning.

6 Questions You Need To Answer To Make Sure 3D Simulations Will Work For Your Company

In this article, I will share my experience in the development of 3D training simulations. I will look at some of the projects we have developed over the last 6 years, where we went wrong and where we went right. These are clients from the nuclear, transport retail, and educational sectors. This post was first published on eLearning Industry.

Responsive eLearning with Captivate 2017 – Part 11: Recording responsive simulation

We are almost at the end of this blog post series. So far we’ve learned how to create a responsive project, rescale it, add Fluid Boxes to the slides, add objects to the Fluid Boxes, apply background fill, modify the properties of the Fluid Boxes, use the static and optional properties, best practices for adding text, and using Fluid Boxes in master slides. Now let’s learn how to record responsive simulations in Adobe Captivate 2017.

The steps to record a responsive simulation are the same as a normal simulation. The only difference is that you cannot start the workflow from creating a simulation directly. You will first need to create a responsive project and then add simulation slides to it.

Watch this video to learn about the steps to record and edit responsive software simulations:

In the next part, we will learn how to enable gestures for responsive and HTML5 courses in Adobe Captivate.

Happy captivating! 			</div><!-- .entry-content -->
	<footer class=

Simulation-Based Learning: Building Skill And Practice Using eLearning

Practice is the key; it separates the novice from the expert. Most eLearning today focuses on 'knowledge' rather than practice. Case Method 2.0 is an approach for designing eLearning specifically to enable practice of key skills. This post was first published on eLearning Industry.
